Introduction

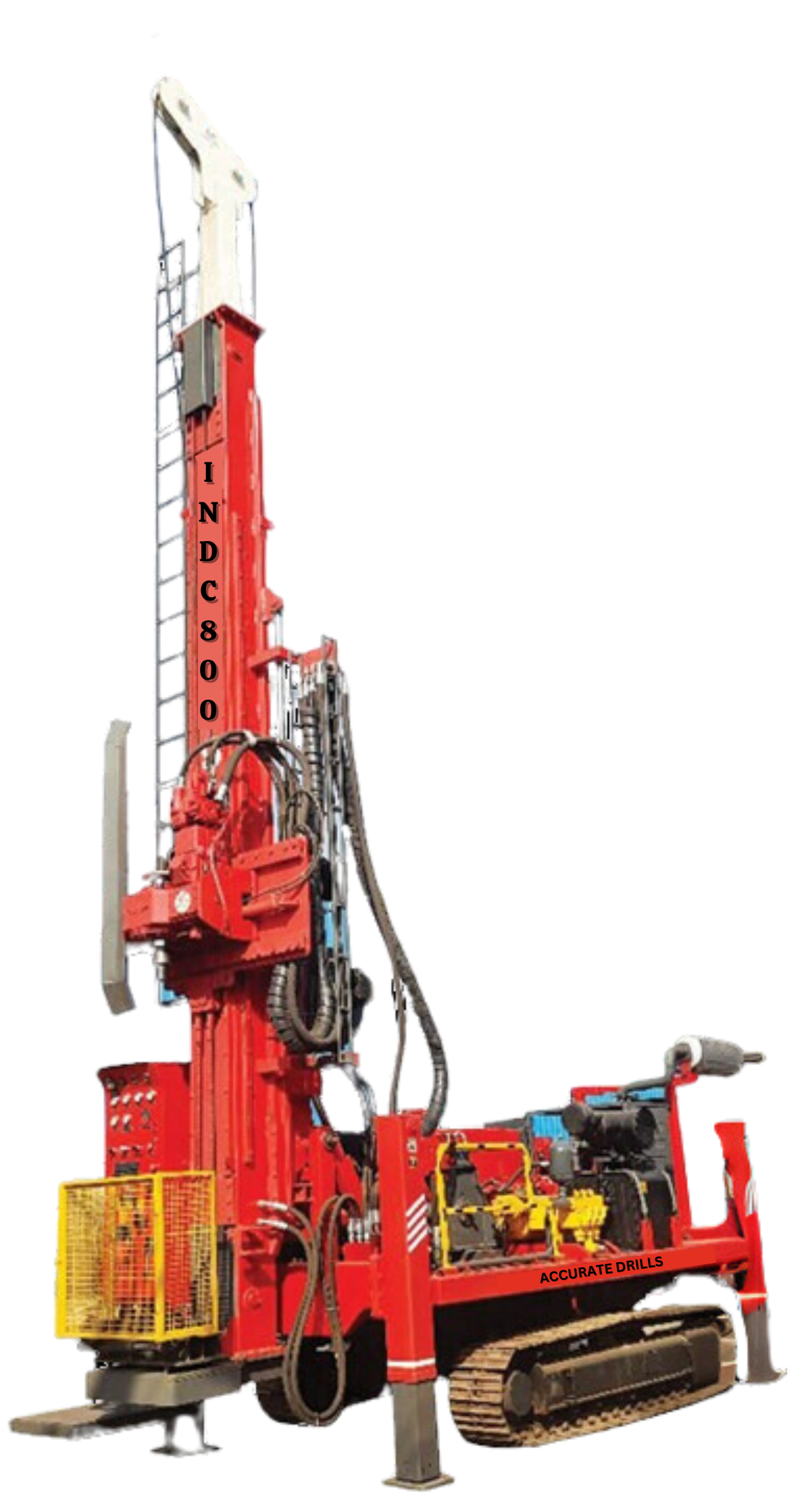

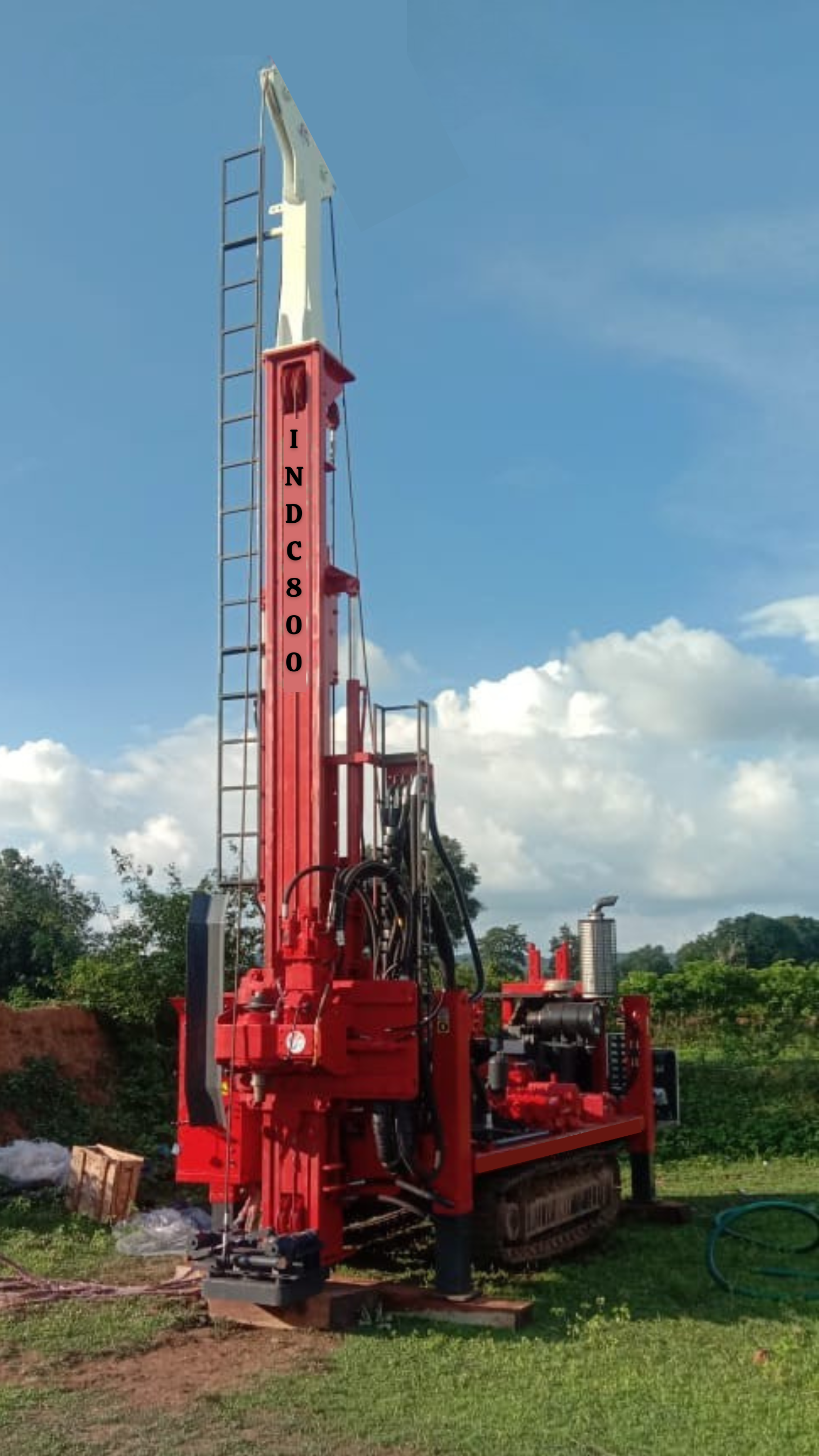

Designed for deep drilling applications, this high-performance core drilling rig is engineered to deliver exceptional depth capabilities, reaching 800 meters (NQ size) and 450 meters (HQ size) with precision and efficiency. The box-type mast construction, featuring a 3.25-meter head travel length and a 6-meter rod hoisting capacity, provides a stable and robust drilling platform for demanding exploration projects.

A hydraulic wireline winch mounted on the drill frame, boasting a 1-ton capacity, 150 m/min speed, and a 6mm cable diameter.

The hydraulic system, incorporating piston and gear-type pumps, is designed for maximum efficiency and reliability, with filtration levels of 25/10 microns and a 400-liter tank capacity to ensure consistent hydraulic performance under extreme conditions.

The hydraulic cylinder feed system generates 4 tons of pull-down force and 8 tons of pull-up force, ensuring superior penetration and lifting capacity. The multi-speed gear-driven rotation head, coupled with a hydraulic side shift mechanism, delivers a maximum torque of 4000 Nm and speeds up to 1300 RPM, allowing for efficient and controlled drilling operations in various geological conditions.

A triplex hydraulic mud pump, delivering 140 LPM at 750 PSI (8.4 m³/hr), provides optimal fluid circulation, ensuring effective borehole flushing and cuttings removal. The foot clamp system, featuring hydraulic BQ to HQ jaws with a 20.32 cm (8") table opening, ensures secure and precise rod handling during operations.

Powered by a 126 kW (169 HP) turbocharged diesel engine from Cummins or an equivalent manufacturer, the rig ensures high power output and fuel efficiency, maintaining optimal drilling performance across various terrains.

This technologically advanced drilling rig is the ultimate solution for deep-core drilling, mineral exploration, and geotechnical investigations, offering a perfect blend of power, precision, and durability.
