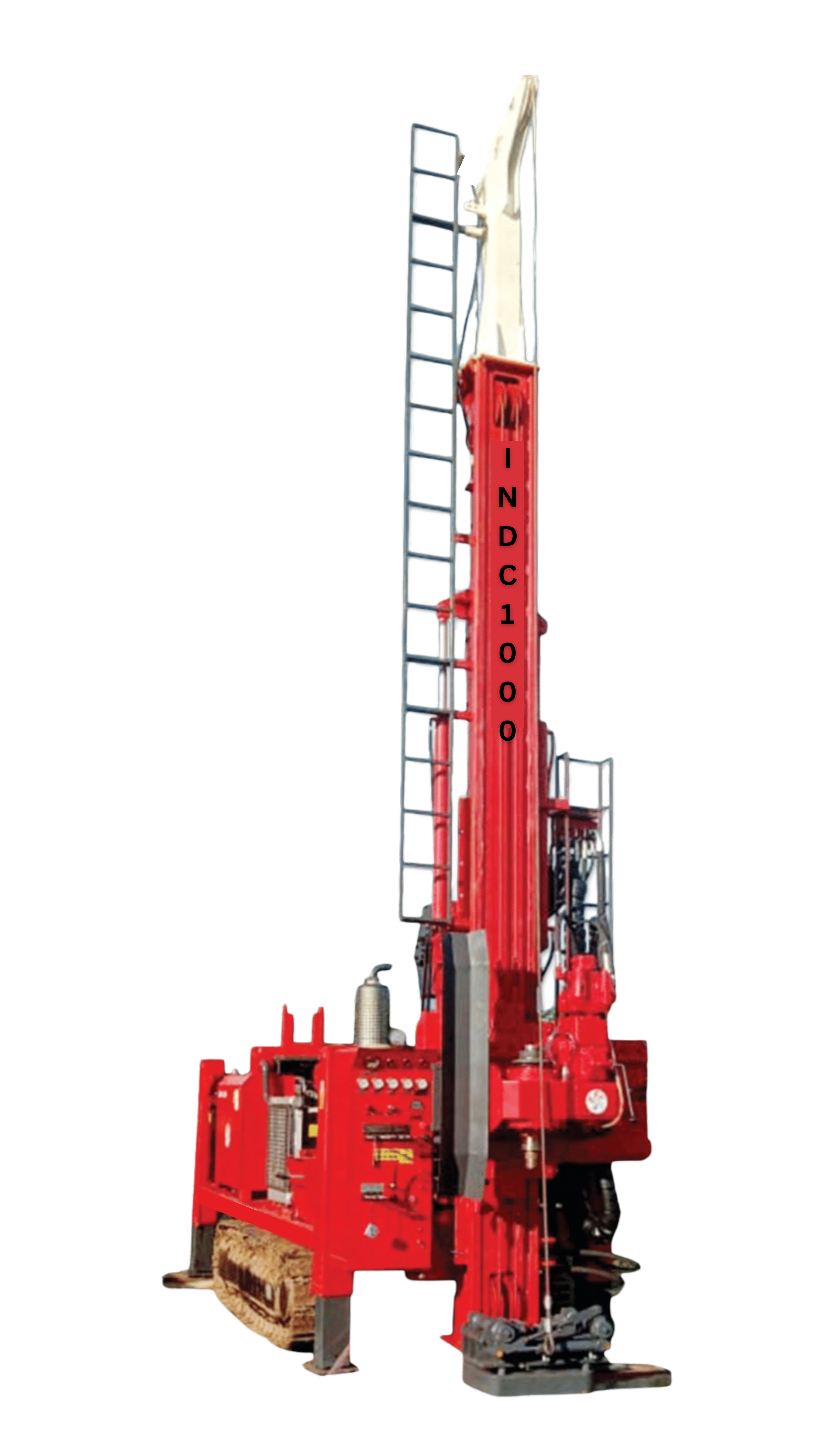

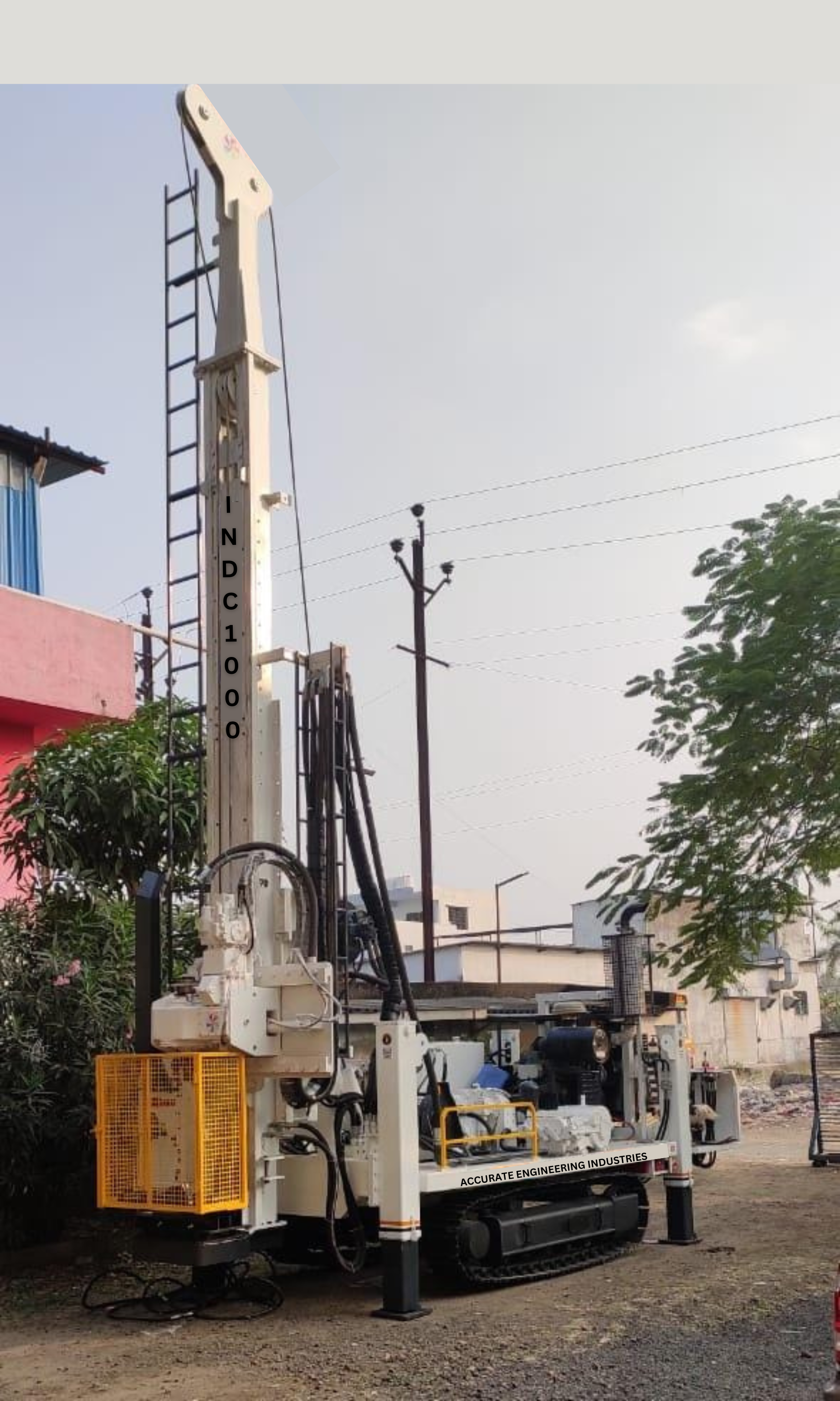

The INDC 1000 is a high-performance drilling solution engineered for deep mineral exploration and geological core sampling. Designed to deliver precision, efficiency, and reliability, this rig is ideal for mining, geotechnical, and hydrogeological applications.
With its robust structure, advanced hydraulic system, and high-powered drilling capabilities, this rig ensures smooth operation even in the most challenging terrains. Capable of reaching depths of up to 1000 meters, it provides accurate core samples essential for resource evaluation and exploration. Its user-friendly design, low maintenance requirements, and adaptability to various drilling conditions make it a preferred choice for drilling professionals worldwide.
Built for efficiency, safety, and durability, the INDC 1000 is the ultimate tool for deep-core drilling projects, offering unmatched performance in the field.
TECHNICAL SPECIFICATIONS | |
RIG CAPACITY: | |
NQ Size: 1000 Mtrs | HQ Size: 650Mtrs |
MAST: | |
Type | Box Type Construction |
Head Travel Length: 3.25 Mtrs | Rod Hoisting LengthMtr: 6 Mtrs |
HEAD FEED SYSTEM: | |
Type | Through Hydraulic Cylinder |
Pull Down Force: 5 Tons | Pull Up Force: 10 Tons |
ROTATION HEAD: | |
Type | Gear Driven Top Head with 4 Speed. Imported Funk Transmission |
Side Shift | Hydraulic |
TORQUE AND SPEEDRATINGS: | |
Maximum Torque: 4500 NM | Maximum Speed: 1300 Rpm |
MAIN WINCH: | |
Hoisting Capacity: 9 Tons | Mounting: On Mast |
WIRE LINE WINCH: | |
Hoisting Capacity: 1.5 Tons | Mounting: On Drill Frame |
Hoisting Speed | 150 Mtrs/Min BareDrum Speed |
HYDRAULICS SYSTEM: | |
Hydraulic Components | Consists of Variable Piston Pump, Variable Piston Motor,Gear Pumps, Directional Control Valve, Relief Valves, Oil Cooler, Filter etc. |
CONTROL PANEL: | |
Gauges | Rotation, Feed, Mud Pump, Hoist, System Pressure, Engine Oil Pressure, Engine Oil Temperature, Engine RPM, Ammeter, Spindle RPM, Micro Feed, Hold Back arrangements etc. |
MUD/WATER PUMP: | |
Type | Triplex Single Acting (Imported) |
Drive: Hydraulic | Displacement: 140 LPM @ 1000 PSI |
PRIME MOVER: | |
Type: | Turbo Charged Diesel Engine |
Make: Cummins/Equivalent | 169 HP, Water CooledEngine |
FOOT CLAMP: | |
Type: Hydraulic BQ TO HQ Jaws | Table Opening: 8” |
MOUNTING: | |
Jack: Box Type | Type: Crawler/Truck/Skid/Trailer |
NOTE: Technical specifications are subject to revision as part of the continuous improvement and R&D effort.
