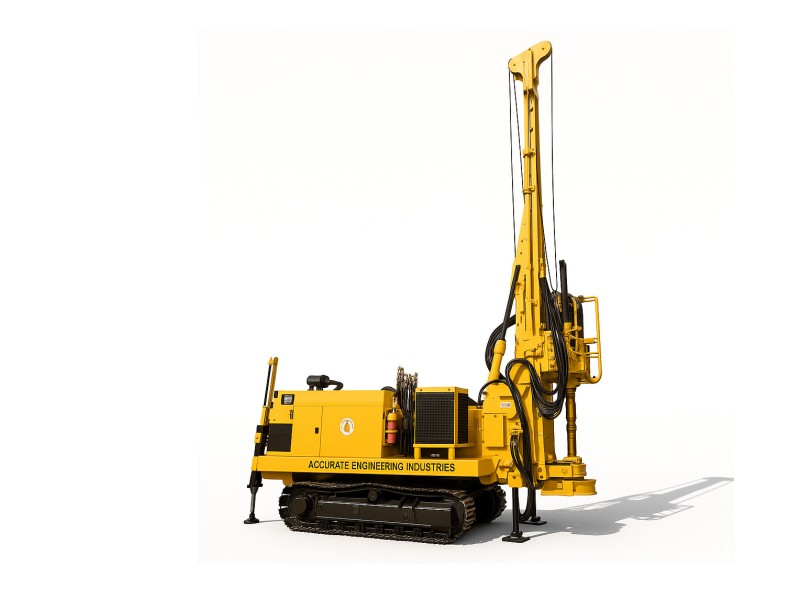

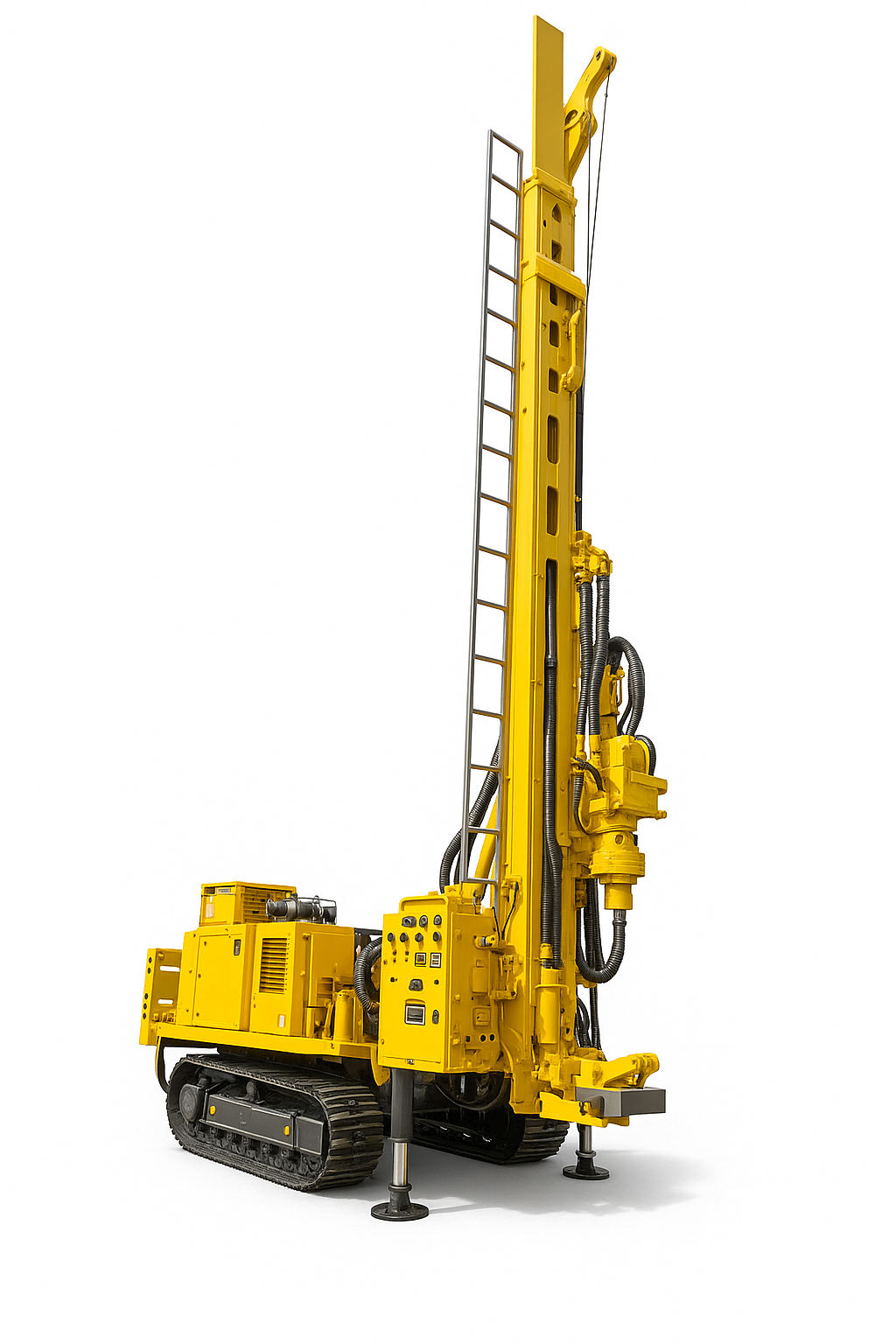

INDC 400

Home Exploration Drill Rigs INDC 400

Introduction

The Diamond Core Drilling Machine INDC400 is a powerful and efficient tool designed for deep, precision core drilling in mineral exploration, geotechnical investigation, and construction projects. Engineered for reliability and high performance, this rig is capable of reaching depths up to 400 meters while delivering high-quality core samples with minimal disruption. Its robust design, combined with user-friendly controls and advanced safety features, makes it an ideal choice for drilling professionals working in challenging environments.

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

RIG CAPACITY:



NQ Size: 400 Mtrs

HQ Size: 200Mtrs

MAST   :



Type : Box Type Construction

Head Travel Length: 3.25 Mtrs

Rod Hoisting Length Mtrs : 6 Mtrs

HEAD FEED SYSTEM :



Type: Through Hydraulic Cylinder

Pull Down Force : 3 Tons

Pull Up Force : 4 Tons

ROTATION HEAD:



Type : Gear Driven with Multi Speed Gear Box (Imported Funk Make)

Side Shift : Hydraulic

TORQUE AND SPEED RATINGS:



Maximum Torque: 2500 NM

Maximum Speed: 1000 Rpm

MAIN WINCH



Hoisting Capacity :  3.5 Tons

Mounting : On Mast

WIRE LINE WINCH:



Cable Diameter: 6mm

Mounting: On Drill Frame

HYDRAULICS SYSTEM:

Hydraulic Components

Consists of Variable Piston Pump, Variable Piston Motor, Gear Pumps, Directional Control Valve, Relief Valves, Oil Cooler, Filter etc.

CONTROL PANEL:

Gauges

Rotation, Feed, Mud Pump, Hoist, System Pressure, Engine Oil Pressure, Engine Oil Temperature, Engine RPM, Ammeter, Spindle RPM, Micro Feed etc.

MUD/WATER PUMP :



Type: Triplex Single Acting

Drive: Hydraulic

Displacement : 140 LPM @ 750 PSI

PRIME MOVER :

Diesel Engine

Type : Turbo Charged Diesel Engine

Make: Cummins / equivalent

90HP, Water Cooled Engine

FOOT CLAMP :



Type: Hydraulic BQ TO HQ Jaws

Table Opening: 8”

MOUNTING :



Type : Crawler/ Truck/ Skid/ Trailer

MAIN BENEFITS



  • Equipped with a powerful head feed system, offering 3 tons of pull-down force and 4 tons of pull-up force, this rig provides unmatched penetration capabilities.
  • The gear-driven rotation head with a maximum torque of 2500 NM and a speed of up to 1000 RPM ensures smooth and efficient drilling operations.
  • Our rig features a main winch with a 3.5-ton hoisting capacity and a high-speed wireline winch for enhanced operational efficiency.
  • The advanced hydraulic system, comprising directional control valves, relief valves, and an oil cooler, guarantees seamless operation and precise control.
  • Designed for versatility, this rig is available in crawler, truck, skid, or trailer-mounted configurations, making it adaptable to various terrains and drilling conditions.
  • Powered by a turbocharged 90 HP water-cooled diesel engine, the rig ensures reliable performance in the most challenging environments.
  • Triplex single-acting mud/water pump provides excellent flushing efficiency.
  • Ideal for mineral exploration, geotechnical investigations, and core sampling, this high-performance drilling rig is the ultimate solution for precision drilling.

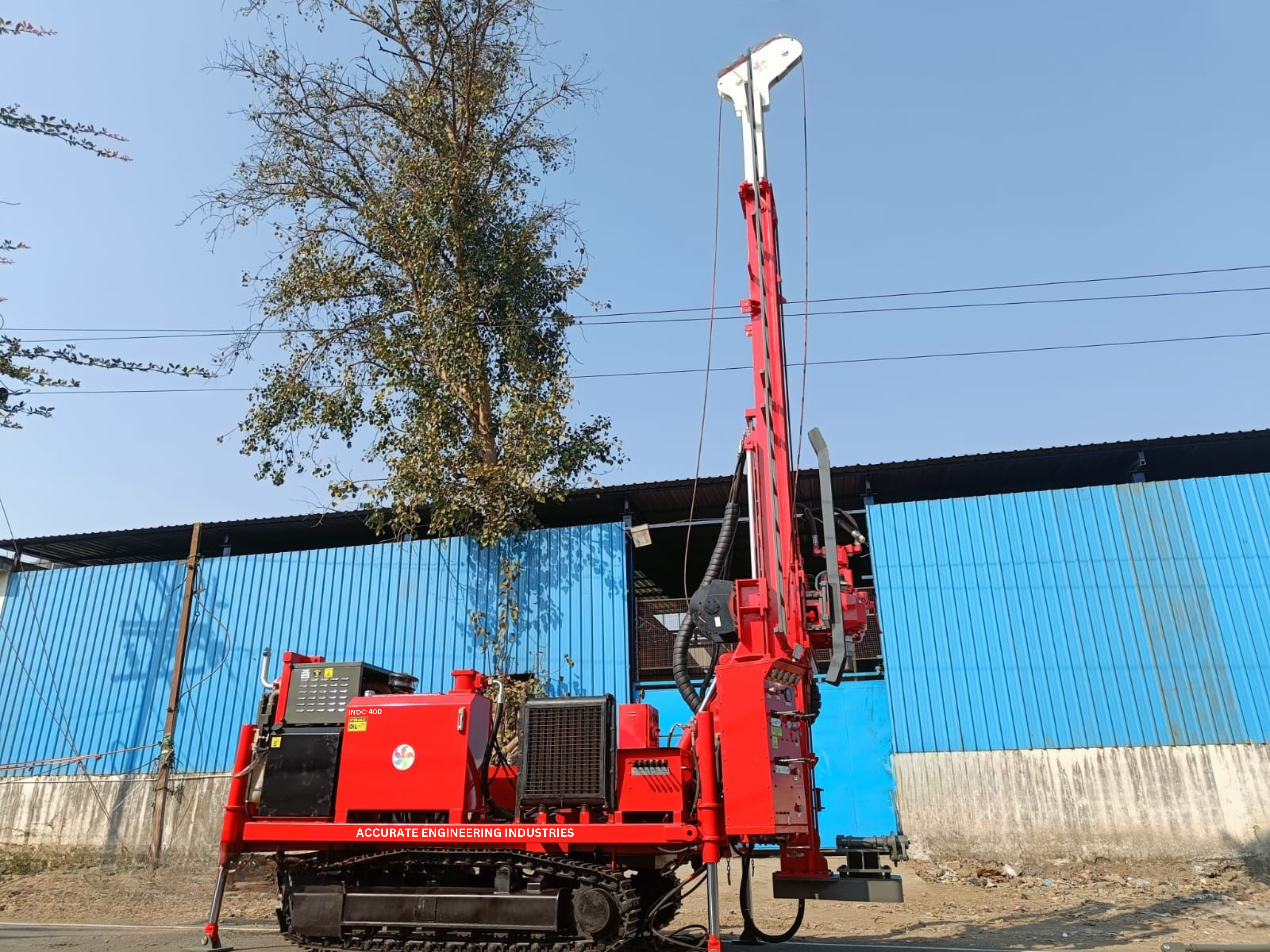

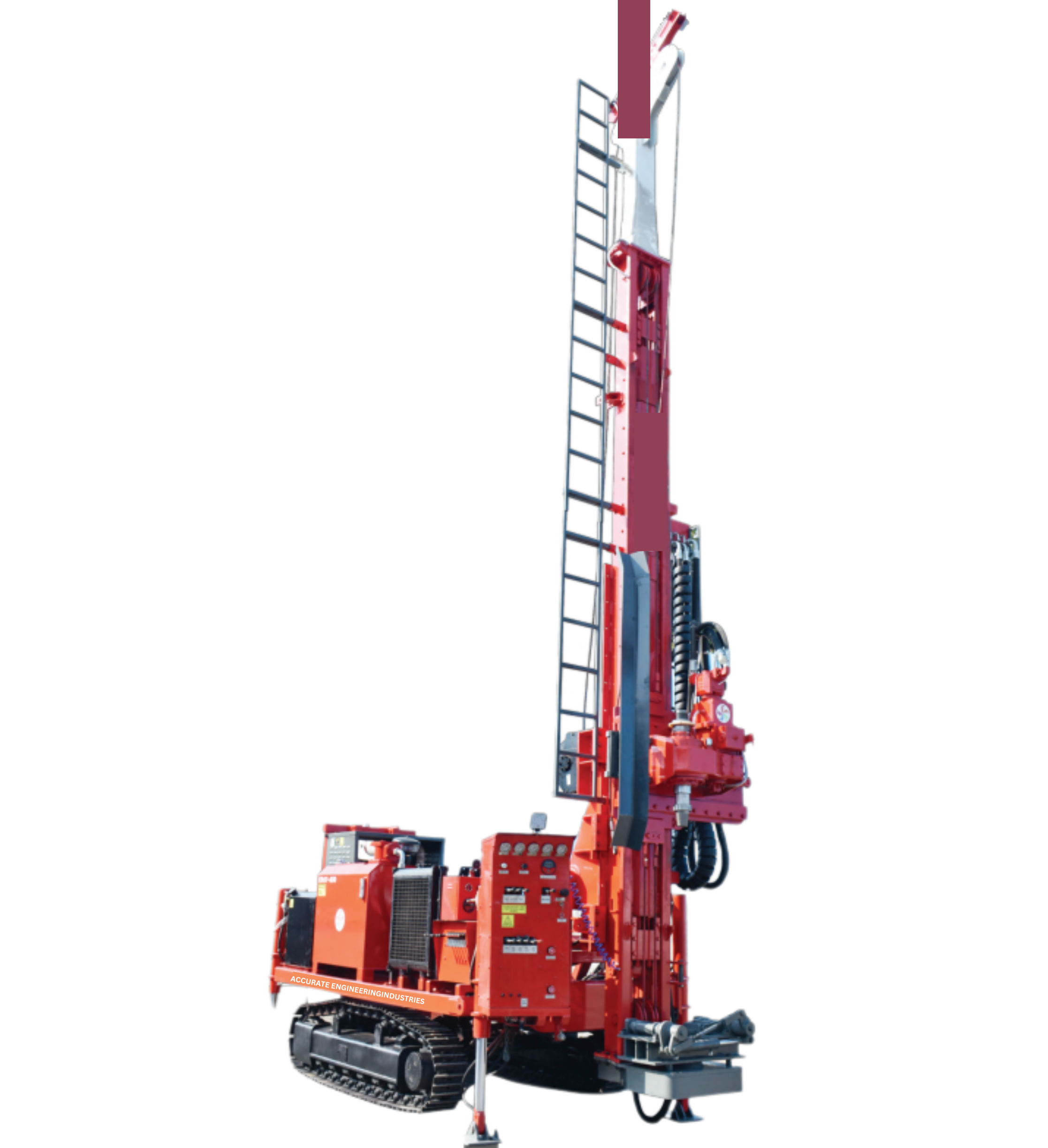

Our Gallery
